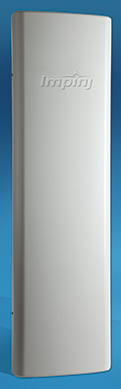

Impinj Speedway xPortal RFID Reader

High Performance, Integrated Portal RFID Reader

The Speedway^® xPortal^™, an integrated portal reader, incorporates the industry-leading Speedway Revolution RFID reader and Impinj's Dual-Linear Phased Array (DLPA) antenna technology, yielding the industry's smallest, most flexible, and cost-effective RFID portal solution.

Impinj's Speedway xPortal RFID reader solves the size and mounting limitations of traditional portals with an attractive, light-weight, and low-profile unit.

Measuring approximately 30.5 x 8.75 x 2 in (77.5 x 22.2 x 5 cm) and weighing less than 10 lbs (4.5 kg), its compact form is unobtrusive, streamlined, and ultimately flexible, yet delivers better performance than larger, more costly industrial-scale portals.

The Speedway xPortal RFID reader integrates high-performance, Impinj-designed DLPA antenna technology with beam switching and polarization attributes that are dynamically managed by the reader, providing consistent and broad coverage of the read zone.

Designed for retail, office, hospital, and other indoor environments, the Speedway xPortal RFID reader is ideal for monitoring tagged items, pallets, equipment, files, or people passing through doorways, hallways, or other zonal coverage areas.

Purchase the Speedway xPortal - FREE SHIPPING

Click to view the Speedway xPortal Brochure

Impinj Speedway® xPortal - At A Glance

Air Interface Protocols	EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Supported Regions or Geographies	US, Canada and other regions following US FCC Part 15 regulations (902-928 MHz) Europe and other regions following ETSI EN 302 208 without LBT regulations (865-868 MHz)
Antennas	Dual-Linear Phased Array (DLPA) antenna technology
Radiated Power	FCC 4W EIRP, ETSI 2W ERP
HPBW (x-z plane)	60º ± 3º (3dB beam width)
HPBW (y-z plane)	80º ± 3º (3dB beam width)
Radome	High impact strength, UV, chemical and cleaning solution resistant
Transmit Power	FCC +10 to +28.5 dBm, ETSI +10 to +27.5 dBm
Max Receive Sensitivity	-82 dBm
Application Interface	EPCglobal Low Level Reader Protocol (LLRP) v1.0.1
Network Connectivity	10/100BASE-T auto-negotiate (full/half) with auto-sensing MDI/MDX for auto-crossover (RJ-45)
IP Address Configuration	DHCP, Static, or Link local Addressing (LLA) with Multicast DNS (mDNS)
Time Sychronization	Network Time Protocol (NTP)
Management Interfaces	Impinj Web Management UI Impinj RShell Management Console using serial management console port, telnet or SSH SNMPv2 MIBII EPCglobal Reader Management v1.0.1 Syslog
Reliable Firmware Upgrade	Dual image partitions enable smooth transition to new firmware while the reader is still operating Scalable upgrade mechanism enabling simultaneous scheduled upgrades of multiple readers USB Flash Drive EPCglobal Reader Management v1.0.1 Impinj Web Management Interface
Power Sources	Power over Ethernet (PoE) IEEE 802.3af +24 VDC @ 800 mA via external universal power supply with locking connector—sold separately
Environmental Sealing	IEC IP52
Operating Temperature	-20 ºC to +50 ºC
Humidity	5% to 95%, non-condensing
Dimensions (H x W x D)	30.5 x 8.75 x 2 in (77.5 x 22.2 x 5 cm)
Weight	6.5 lbs (3 kg)
Mounting Options	Keyhole slots, clearance holes, and integrated threaded fasteners (1/4-20 X 1/4") VESA MIS-D, 100/75, C (M4 x 7 mm thread depth) Conduit knockouts for easy termination of conduit Pass-through knockouts on back for data and power cabling
RoHS	Compliant to European Union directive 2002/95/EC
This product is covered by one or more of the following U.S. patents. Other patents pending. 7283037, 7026935, 7049964, 7501953, 7030786, 7246751, 7245213, 7408466, 7187290, 7304579, 7510117, 7107022, 7419096, 7382257, 7405660, 7436308, 7417548, 7391329, 7391329, 7592897, 758961
