Impinj RFID Antennas
Impinj offers a number of RFID Antennas with varying range and frequency characteristics. In general, FCC designates the frequency band of 902–928 MHz in North America. LHP designates Left Hand Polarized. RHP designates Right Hand Polarized. With the exception of the Mini-Guardrail, all RFID antennas ship with a two-meter RFID Antenna cable. The Guardwall RFID antenna ships with two RFID Antenna cables and requires two RFID reader antenna ports. See the following section for list of appropriate extension cables.
All Impinj RFID Antennas, with the exception of the Mini-Guardrail, ship with a two-meter long cable. The Guardwall RFID antenna ships with two (and uses two antenna ports on the RFID reader).
Far Field RFID Antenna
 |
IPJ-A1000-USA: Far Field Antenna LHP (FCC) (25.9 x 25.9 x 3.8 cm) | $180 | |
IPJ-A1001-USA: Far Field Antenna RHP (FCC) (25.9 x 25.9 x 3.8 cm) | $180 |
Brickyard RFID Antenna
 |
IPJ-A0400-USA: Brickyard Antenna (FCC) (29.5 cm diam., 6 cm deep) | $295 |
Guardwall RFID Antenna
 |
IPJ-A0402-USA: Guardwall Antenna (FCC) (70 x 40 x 10 cm) | $1850 |
Mini-Guardrail RFID Antenna
 |
IPJ-A0303-000: Mini-Guardrail (Broadband); (13 x 7 x 2 cm); No cable included. | $275 |

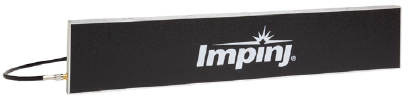

Threshold RFID Antenna (Linear)
 |
IPJ-A0311-USA: Threshold Antenna (FCC) (46 x 9 x 2 cm) | $365 |
